RGD Series

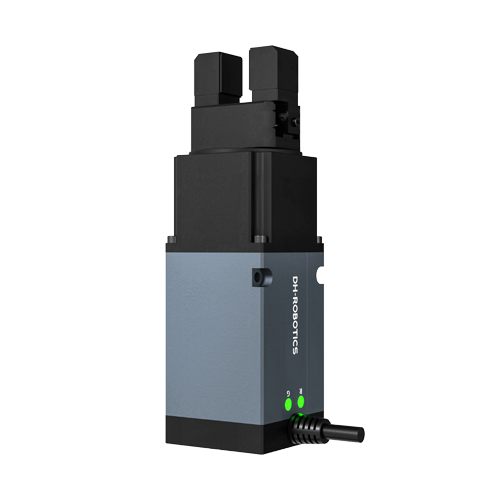

DH-ROBOTICS’ RGD series is direct drive rotaty gripper. Adopting direct-drive zero backlash rotation module, it improves rotation accuracy , thus it can be applied to scenarios such as high-precision positioning assembly, handling, correction and adjustment of 3C electronics and semiconductors.
Products Features
Zero backlash l High repeatability
RGD series uses directly electric rotating machinery to achieve zero backlash and rotaty resolution reaches 0.01°, which is suitable for the rotary positioning scenarios in semiconductor production.
Fast and Stable
With DH-Robotics' excellent drive control method, as well as precision direct drive technology, RGD series can control gripping and rotating movements perfectly. Rotation speed reaches 1500° per second.
Integrated structure l Power-off protection
The dual servo system for gripping and rotating is integrated with the drive control module, which is more compact and suitable for more scenarios. Brakes are optional for the needs of various applications.
| More Features
- Integrated design
- Adjustable parameters
- Intelligent feedback
- Replaceable Fingertip
- IP40
- CE certification
- FCC certification
- RoHs certification
Product Parameters
| RGD-5-14 | RGD-5-30 | RGD-35-14 | RGD-35-30 | |
|---|---|---|---|---|
| Gripping force (per jaw) | 2-5.5 N | 2-5.5 N | 10-35 N | 10-35 N |
| Stroke | 14 mm | 30 mm | 14 mm | 30 mm |
| Rated torque | 0.1 N·m | |||
| Peak torque | 0.25 N·m | |||
| Rotary range | Infinite rotating | |||
| Recommended workpiece weight | 0.05 kg | 0.35 kg | ||
| Max. rotation speed | 1500 deg/s | |||
| Rotate the backlash | Zero backlash | |||
| Repeat accuracy (swiveling) | ± 0.1 deg | |||
| Repeat accuracy (position) | ± 0.02 mm | |||
| Opening/Closing time | 0.5 s/0.5 s | 0.7 s/0.7 s | ||
| Weight | 0.86 kg (without brake) 0.88 kg (with brake) | 1 kg (without brake) 1.02 kg (with brake) | 0.86 kg (without brake) 0.88 kg (with brake) | 1 kg (without brake) 1.02 kg (with brake) |
| Size | 149 mm x 50 mm x 50 mm | 149 mm x 50 mm x 50 mm | 159 mm x 50 mm x 50 mm | 159 mm x 50 mm x 50 mm |
| Communication interface | Modbus RTU (RS485) | |||
| Running sound | < 60 dB | |||
| Rated voltage | 24 V DC ± 10% | |||
| Rated current | 1.2 A | |||
| Peak current | 2.5 A | |||
| IP class | IP 40 | |||
| Recommended environment | 0~40°C, under 85% RH | |||
| Certification | CE, FCC, RoHS | |||
